AN4 AN6 AN8 AN10 AN12 AN16 Nylon Braided Rubber Fuel Line Oil Hose Kit for Universal Engine Parts Cooling Parts

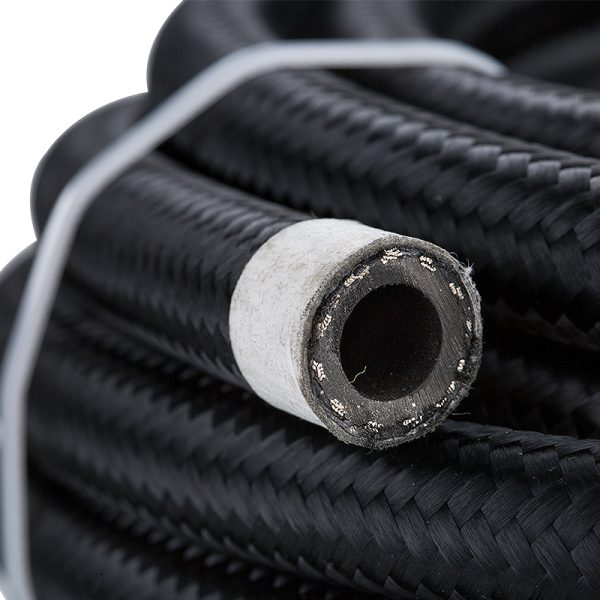

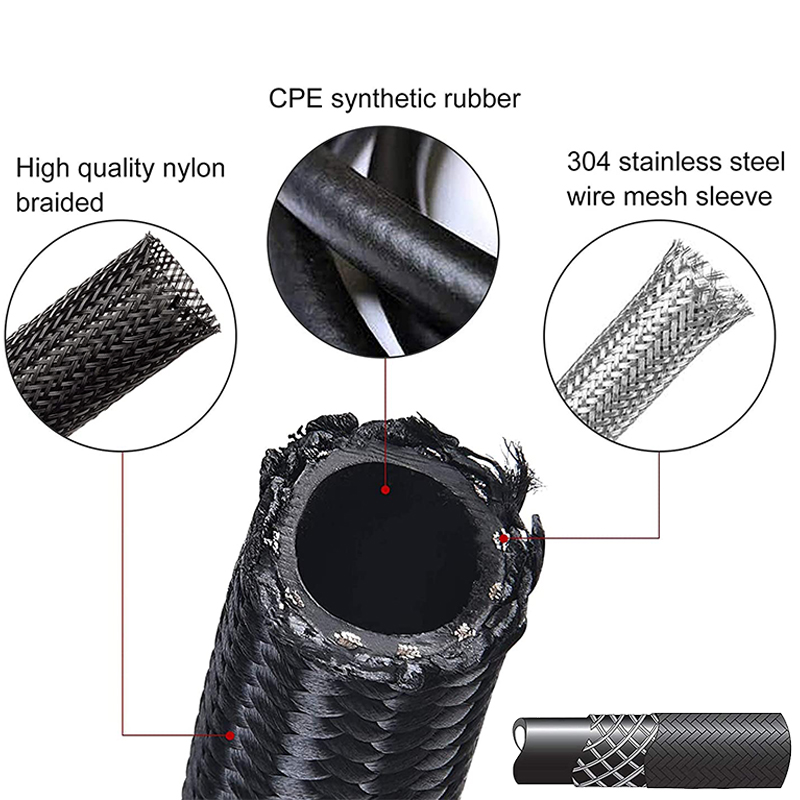

- Quality nylon thread, 304 Stainless steel wire reinforced and synthetic rubber material

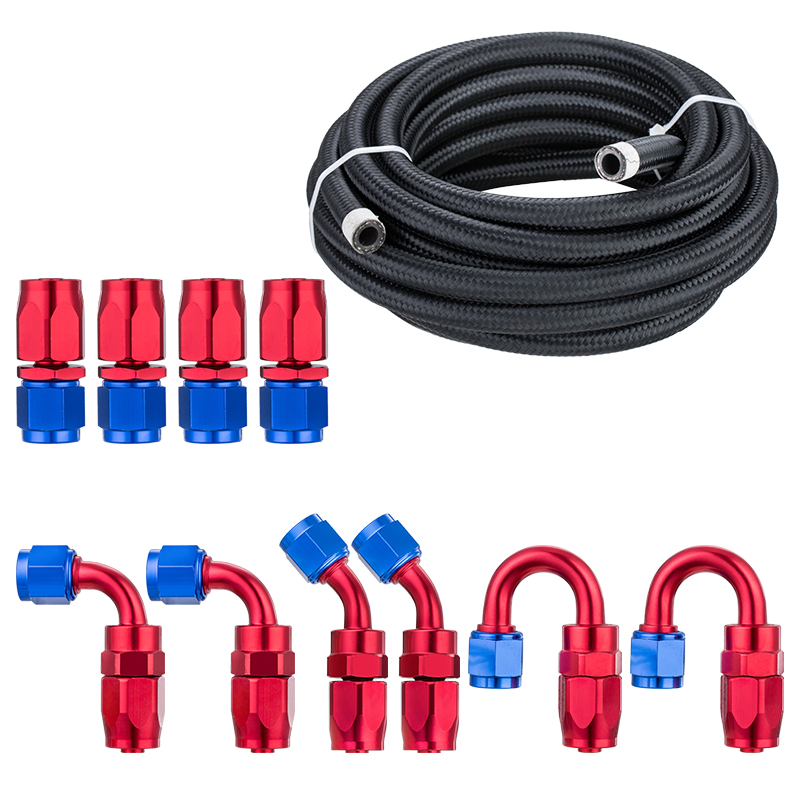

- 90 degree fittingx2, 180 degree fittingx2

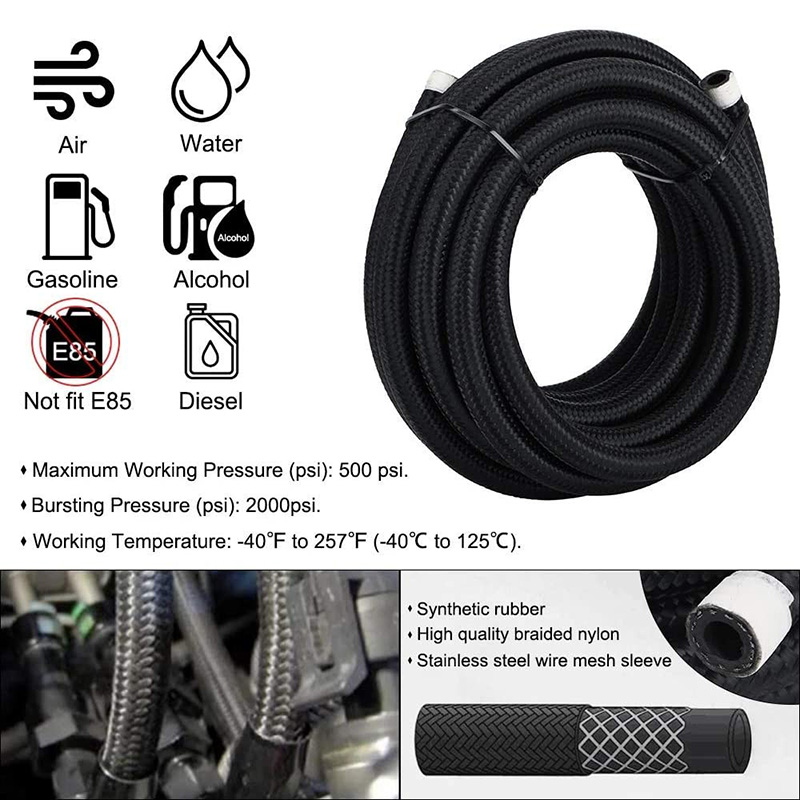

- Work well to most fluids including the oil, diesel, water, gas, fuel etc, for E85 fuel we recommend you use our braided PTFE fuel line
- Compatible with HaoFa Racing swivel fittings

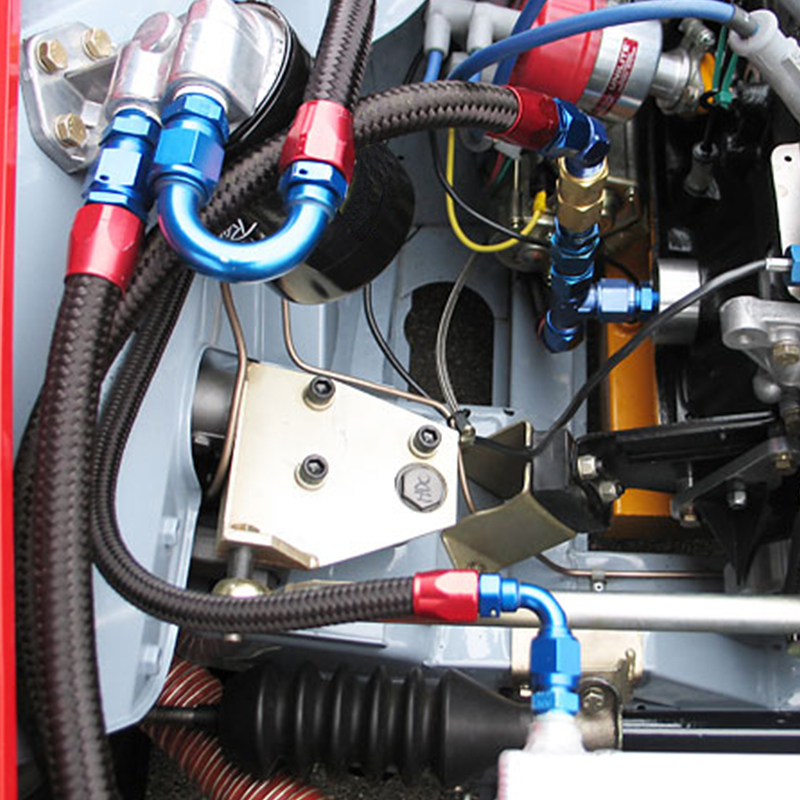

- Application to most street/rod car, boat, motorcycle etc

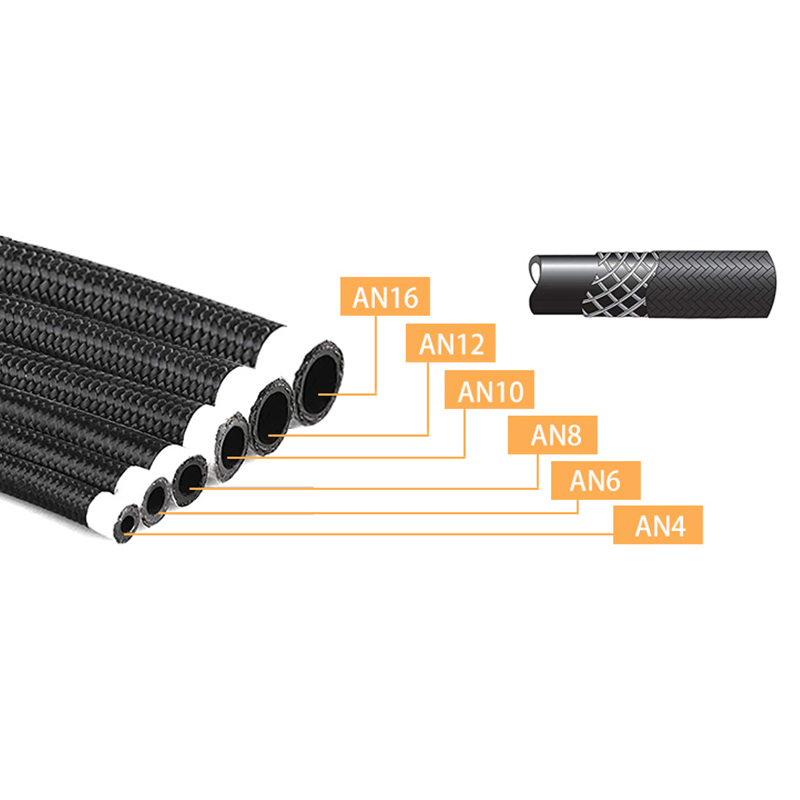

- Available size: AN3, AN4, AN6, AN8, AN10, AN12,AN16,
Product Categories
Nylon Braided Rubber Hose Specifications
| Product name | Item | I.D.(mm) | O.D.(mm) | W.P.(psi) | B.P. (psi) | Min.b.r. (mm) | Temperature（min max） |
| Nylon Braided Rubber Hose Kit | -4 | 5.56 | 11.17 | 500 | 2000 | 50.80 | －40—120℃ |
| -6 | 8.71 | 14.22 | 500 | 2000 | 63.50 | －40—120℃ | |
| -8 | 11.13 | 17.2 | 500 | 2000 | 88.90 | －40—120℃ | |
| -10 | 14.29 | 20.83 | 500 | 2000 | 101.60 | －40—120℃ | |
| -12 | 17.46 | 24.38 | 500 | 2000 | 114.30 | －40—120℃ | |
| -16 | 22.22 | 29.96 | 348 | 1392 | 126.20 | －40—120℃ | |
| -20 | 28.5 | 36.53 | 348 | 1392 | 139.70 | －40—120℃ |
| Product name | AN | Thread | To Suit Hose |
| Swivel Hose End-STR | -4 | 7/16X20 | Rubber Hose |
| -6 | 9/16X18 | Rubber Hose | |
| -8 | 3/4X16 | Rubber Hose | |
| -10 | 7/8X14 | Rubber Hose | |
| -12 | 1-1/16X12 | Rubber Hose | |
| -16 | 1-5/16X12 | Rubber Hose | |
| -20 | 1-5/8X12 | Rubber Hose | |
| Swivel Hose End45° | -4 | 7/16X20 | Rubber Hose |
| -6 | 9/16X18 | Rubber Hose | |
| -8 | 3/4X16 | Rubber Hose | |
| -10 | 7/8X14 | Rubber Hose | |
| -12 | 1-1/16X12 | Rubber Hose | |
| -16 | 1-5/16X12 | Rubber Hose | |
| -20 | 1-5/8X12 | Rubber Hose | |
| Swivel Hose End90° | -4 | 7/6X20 | Rubber Hose |
| -6 | 9/16X18 | Rubber Hose | |
| -8 | 3/4X16 | Rubber Hose | |
| -10 | 7/8X14 | Rubber Hose | |
| -12 | 1-1/16X12 | Rubber Hose | |
| -16 | 1-5/16X12 | Rubber Hose | |
| -20 | 1-5/8X12 | Rubber Hose | |
| Swivel Hose End180° | -4 | 7/16X20 | Rubber Hose |
| -6 | 9/16X18 | Rubber Hose | |
| -8 | 3/4X16 | Rubber Hose | |
| -10 | 7/8X14 | Rubber Hose | |
| -12 | 1-1/16X12 | Rubber Hose | |
| -16 | 1-5/16X12 | Rubber Hose | |
| -20 | 1-5/8X12 | Rubber Hose |
